SM-1010 PCR Thermal Cycler

1. Reliable performance of heating and cooling elements, high-performance temperature control system.
2. High-performance digital signal processor for precise temperature control.
3. Excellent temperature uniformity.
4. Rapid heating and cooling.
5. Color touch panel, easy to operate.
6. Support large-capacity program storage.
  • Parameters

Introduction:
The gene amplification instrument is an instrument that performs nucleic acid amplification by polymerase chain reaction.
Mainly used in medical institutions, clinical gene amplification testing laboratories that meet the requirements, scientific research institutes, universities, etc.



Technical Specification

Capacity 96
Reaction Volume 10~200μl
Tube Type 96*0.2ml PCR plate; 8*0.2ml PCR tube; 0.2ml single PCR tube
Block Temperature Range 4℃~105℃
Heat Lid Temperature Range 30℃~110℃
Max Heating Rate 4.0℃/s
Max Cooling Rate 3℃/s
Display Resolution 0.1℃
Temperature Accuracy ±0.3℃
Temperature Uniformity ±0.3℃
Block Material Aluminum
Gradient Range 30~99℃
Temperature Differential Range 1~42℃
Program A single program can be up to 30 steps, 99 cycles
Display 7″ LCD
Power Supply 110V~220V, 50/60Hz
External Size(L*W*H) 398*280*257mm
Net Weight 11kg
Package Size(L*W*H) 495*380*380mm
Gross Weight 17kg



Related Products

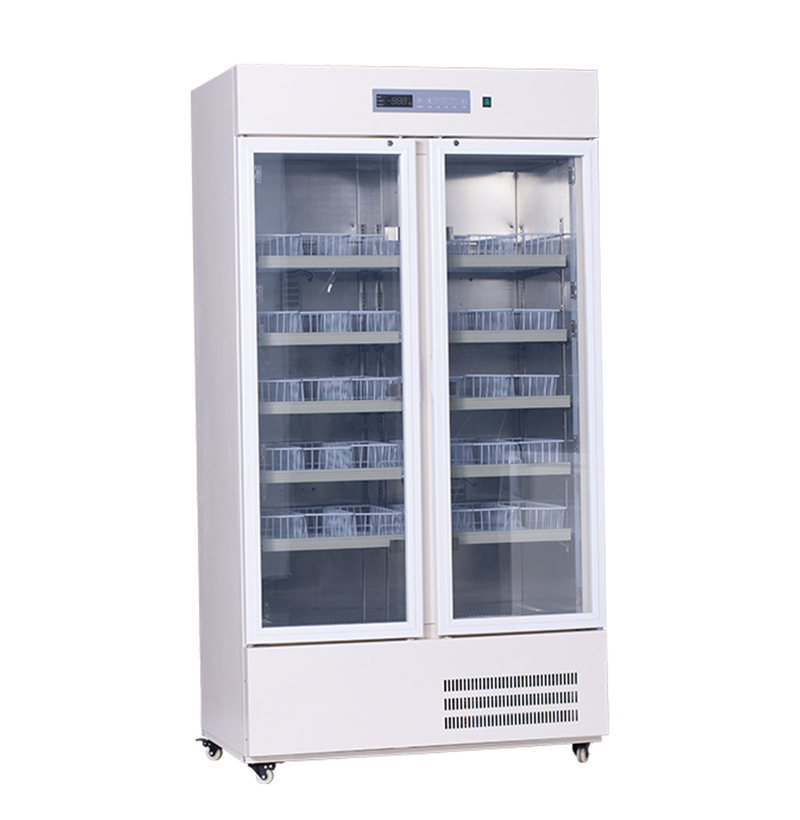

SYC-L660 Medical Refrigerator

Microcomputer temperature control with an accuracy of 0.1 ℃. Equipped with an inner door, the temperature difference is controlled within ±1 degree. Precise temperature control at 4±1 degrees Celsius provides the good temperature for blood storage. System has password protection and frequent start-up protection, etc. Forced air-cooling system keeps the inside of the refrigerator free of frost. Inner chamber made of 304 stainless steel. Built-in LED lighting.

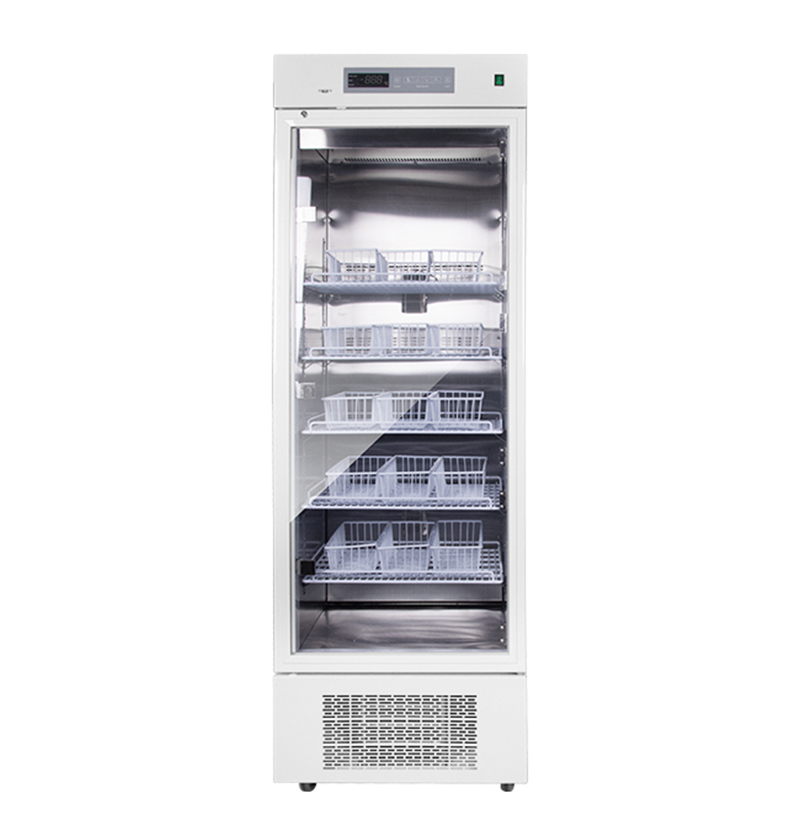

SYC-L360 Medical Refrigerator

Microcomputer temperature control with an accuracy of 0.1 ℃. Equipped with an inner door, the temperature difference is controlled within ±1 degree. Precise temperature control at 4±1 degrees Celsius provides the good temperature for blood storage. System has password protection and frequent start-up protection, etc. Forced air-cooling system keeps the inside of the refrigerator free of frost. Inner chamber made of 304 stainless steel. Built-in LED lighting.

SYC-L230 Medical Refrigerator

Microcomputer temperature control with an accuracy of 0.1 ℃. Equipped with an inner door, the temperature difference is controlled within ±1 degree. Precise temperature control at 4±1 degrees Celsius provides the good temperature for blood storage. System has password protection and frequent start-up protection, etc. Forced air-cooling system keeps the inside of the refrigerator free of frost. Inner chamber made of 304 stainless steel. Built-in LED lighting.

SYC-L130 Medical Refrigerator

Microcomputer temperature control with an accuracy of 0.1 ℃. Equipped with an inner door, the temperature difference is controlled within ±1 degree. Precise temperature control at 4±1 degrees Celsius provides the good temperature for blood storage. System has password protection and frequent start-up protection, etc. Forced air-cooling system keeps the inside of the refrigerator free of frost. Inner chamber made of 304 stainless steel. Built-in LED lighting

SDW-L938 Vertical Freezer

It is suitable for ultra-low temperature experiment of scientific research institutions, special materials, electronic industry, chemical industry, military industry, university experiment, biological engineering, ocean fishing, etc. It can be used for low temperature test of virus, bacteria, red blood cell, white blood cell, skin, bone, bacteria, semen, biological products, foreign products, electronic devices, etc.

SDW-L808 Vertical Freezer

It is suitable for ultra-low temperature experiment of scientific research institutions, special materials, electronic industry, chemical industry, military industry, university experiment, biological engineering, ocean fishing, etc. It can be used for low temperature test of virus, bacteria, red blood cell, white blood cell, skin, bone, bacteria, semen, biological products, foreign products, electronic devices, etc.
