SMB-210 Automatic Biochemistry Analyzer

It is used to quantitatively analyze the clinical chemistry of human serum, plasma, urine, cerebrospinal fluid and other samples. Do not use for other purposes.
1. 37 sample positions.
2. 28 reagent positions.
3. 48 reaction cuvettes.
4. 200 tests per hour.
5. Probe with anti-collision function, liquid level detection function.
  • Parameters

Technical Specification

Overall
Performance
Throughput 200 tests/hour
Analysis Method End-point, Fixed-time, Rate(Kinetic), Turbidimetry
Sample&Reagent System Sample Positions 37 sample positions
Reagent Position 28 reagent positions
Sample Volume 2~70µl
Reagent Volume 20~350µl
Probe Teflon coating, with anti-collision function, liquid level detection function
Probe Washing Automatic washing interior and exterior
Reagent Cooling Refrigerated tray with independent switch
Reaction System Temperature Control 37±0.2℃
Cuvettes 48 reusable cuvettes, optical length 6mm
Mixer Probe Independent stirring
Washing Automatic cuvettes washing
STAT Function YES
Optical System Light Source 6V/10W halogen lamp
Spectrophotometry Post-spectral spectrophotometry
Wavelength 340, 405, 450, 510, 546, 578, 630, 700nm
Absorbance 0~3.0Abs
Calibration&QC Calibration Linear: K factor, 1-point, 2-point and multipoint linear

Non-Linear: Spline, Polygon, Logit-4P, Logit-5P

Quality Control Real-time QC, Westgard multi rule, Cumulative sum check, Twin Plot(2D), Daily QC, Monthly QC
Data Management Software Windows 7/8/10, 32 or 64 bit
LIS System Bi-direction, support HL7 protocol
Interface LAN port access
Printer External optional, multiple reporting mode available
Working Conditions Power Supply AC220V±10%, 50/60Hz; 110V±10%, 60Hz, 300W
Temperature 15~30℃
Water Consumption Deionized water:<5L/H
Humidity 40%~85%
Size&Weight External Size(W*D*H) 625*425*460mm
Net Weight 36kg
Package Size(W*D*H) 750*560*900mm
Gross Weight 55kg



Related Products

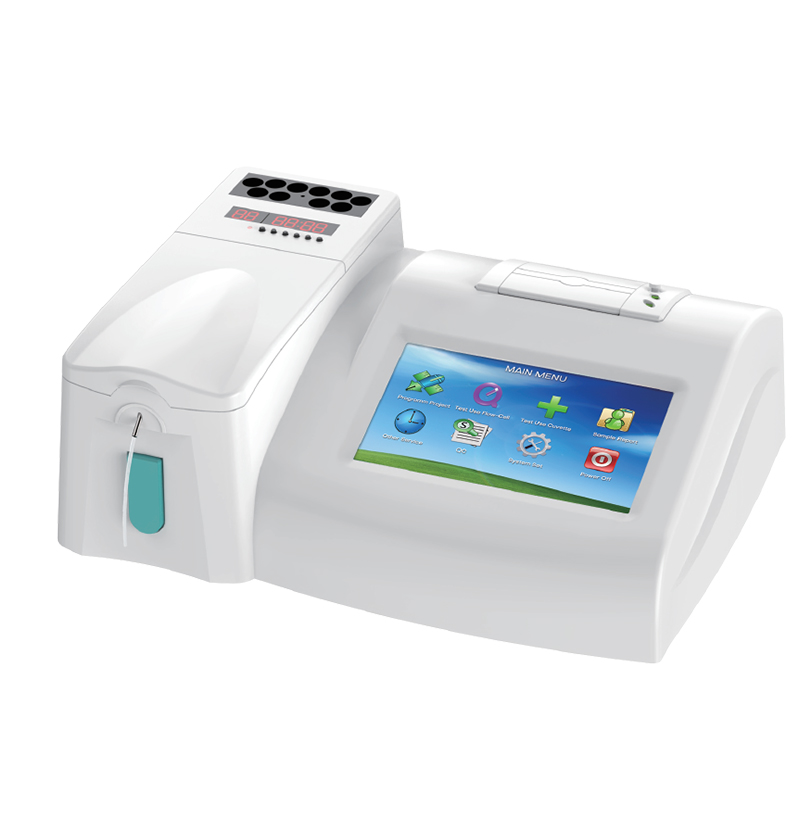

TSM-C15 Semi-auto Biochemistry Analyzer
