SMH-03S 3-Part Hematology Analyzer

Throughput: 60 samples/hour
Principle: Impedance for WBC,RBC,PLT; Cyanide-free method for HGB
Channels: 2
Parameters: 21 parameters(including: WBC, Neu#, Lym#, Mid#, Neu%,Lym%, Mid%, RBC, HGB, HCT, MCV, MCH, MCHC,RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR, P-LCC
Histograms: 3 histograms(including WBC,RBC,PLT histograms)
Sample volume: Normal: 10ul, Prediluted: 20ul
  • Parameters

Technical Specification

Item Descriptions
General Throughput 60 samples/hour
Principle Impedance for WBC,RBC,PLT;  Cyanide-free method for HGB
Channels 2
Parameters 21 parameters(including: WBC, Neu#, Lym#, Mid#, Neu%,Lym%, Mid%, RBC, HGB, HCT, MCV, MCH, MCHC,RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR, P-LCC
Histograms 3 histograms(including WBC,RBC,PLT histograms)
Sample volume Normal: 10ul, Prediluted: 20ul
Software Calibration Manual & auto calibration
Counting modes Venous, capilary, prediluted
Print Auto print, manual print
LIS Support LIS
Language English, Spanish, Italian, French etc
Reagent Reagent Standard: Dilent: 20L, Lyse: 500ml
Cleanser Standard: Probe cleanser: 50ml
Specifications Input 10.4 inch touch screen
Output Internal printer, support external printer
Interface USB port, Network port
Storage 600,000 results with histogram
Blockage clear High voltage, high pressure flush
Net weight ≤20kg
Others Work temperature 10-35°C
Power requirement 100~240 AC, 50/60Hz, 150VA
Atmospheric pressure 70kPa-106.0kPa
Performance Carry-over rate Parameter CV
WBC ≤ 0.5%
RBC ≤ 0.5%
HGB ≤ 0.6%
PLT ≤ 1.0%
Background Parameter Background
WBC ≤ 0.2×109/L
RBC ≤ 0.02×1012/L
HGB ≤ 1 g/L
HCT ≤ 0.5%
PLT ≤ 10×109/L
Precision Parameter CV Measurement range
WBC ≤ 2.0% (4.0-15.0×109)/L
RBC ≤1.5% (3.5-6.0×1012)/L
HGB ≤1.5% (110.0-180.0g)/L
MCV ≤1.0% (80.0-110.0)fL
PLT ≤ 4.0% (150.0-500.0×109)/L
Linearity Parameter Measurement range CV
WBC (0-10.0×109)/L
(10.1-100.0×109)/L
(±0.3×109)/L
±5%
RBC (0-0.99×1012)/L
(1.0-9.99×1012)/L
(±0.05×1012)/L
±5%
HGB (0-99.0g)/L
(100.0-300.0g)/L
(±2.0g)/L
±2%
PLT (0-99×109)/L
100-3000×109)/L
(±8.0×109)/L
±10%



Related Products

SM-1200L 2-8°C Medicine Refrigerator

Meet the requirements of the new version GSP for medicine storage. Can be used for medicine, reagents and various items that need cold storage. Suitable for hospitals, clinics, blood stations of health and epidemic prevention systems, university laboratories, etc.

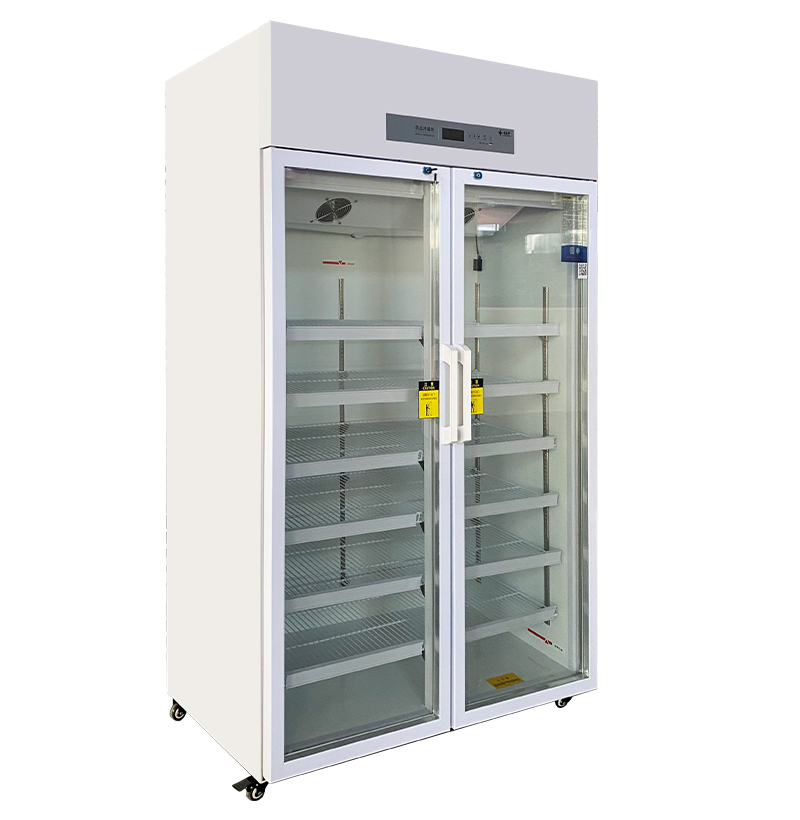

SM-800L 2-8°C Medicine Refrigerator

Meet the requirements of the new version GSP for medicine storage. Can be used for medicine, reagents and various items that need cold storage. Suitable for hospitals, clinics, blood stations of health and epidemic prevention systems, university laboratories, etc.

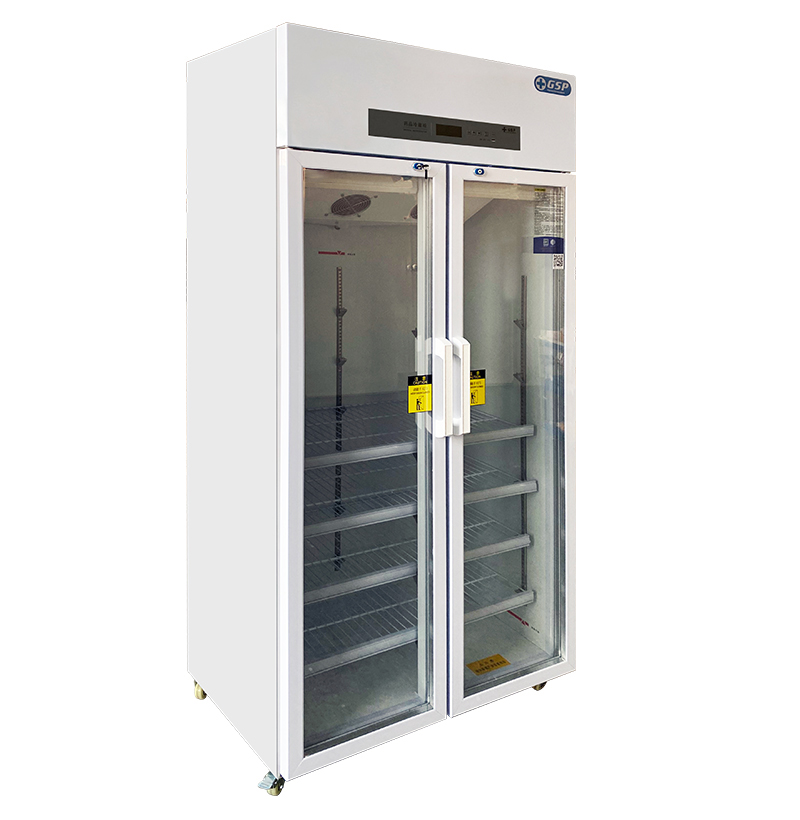

SM-600L 2-8°C Medicine Refrigerator

Meet the requirements of the new version GSP for medicine storage. Can be used for medicine, reagents and various items that need cold storage. Suitable for hospitals, clinics, blood stations of health and epidemic prevention systems, university laboratories, etc.

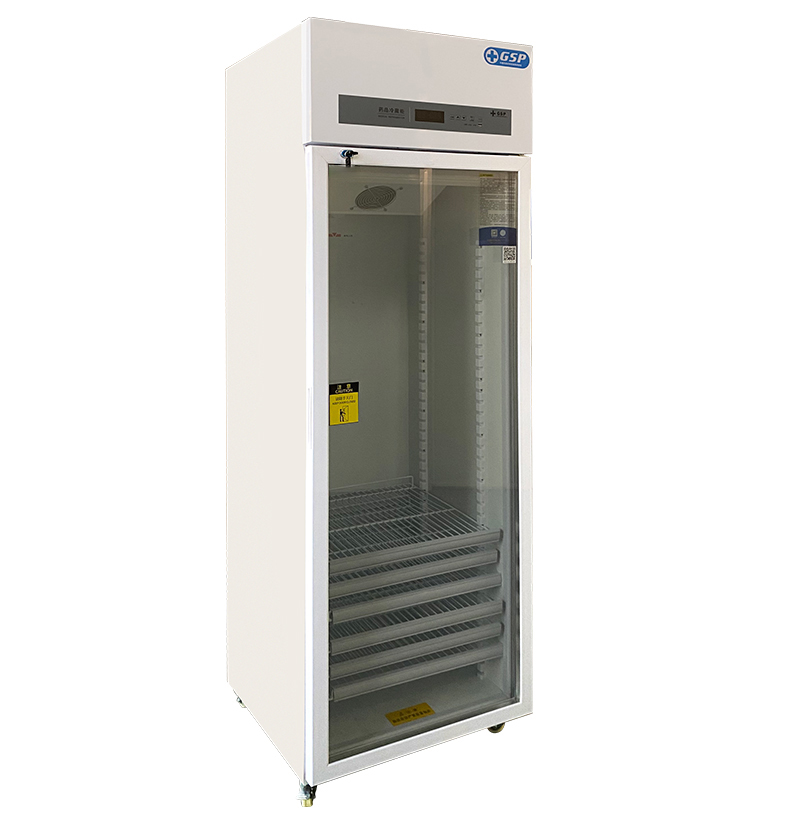

SM-400L 2-8°C Medicine Refrigerator

Meet the requirements of the new version GSP for medicine storage. Can be used for medicine, reagents and various items that need cold storage. Suitable for hospitals, clinics, blood stations of health and epidemic prevention systems, university laboratories, etc.

SM-260L 2-8°C Medicine Refrigerator

Meet the requirements of the new version GSP for medicine storage. Can be used for medicine, reagents and various items that need cold storage. Suitable for hospitals, clinics, blood stations of health and epidemic prevention systems, university laboratories, etc.

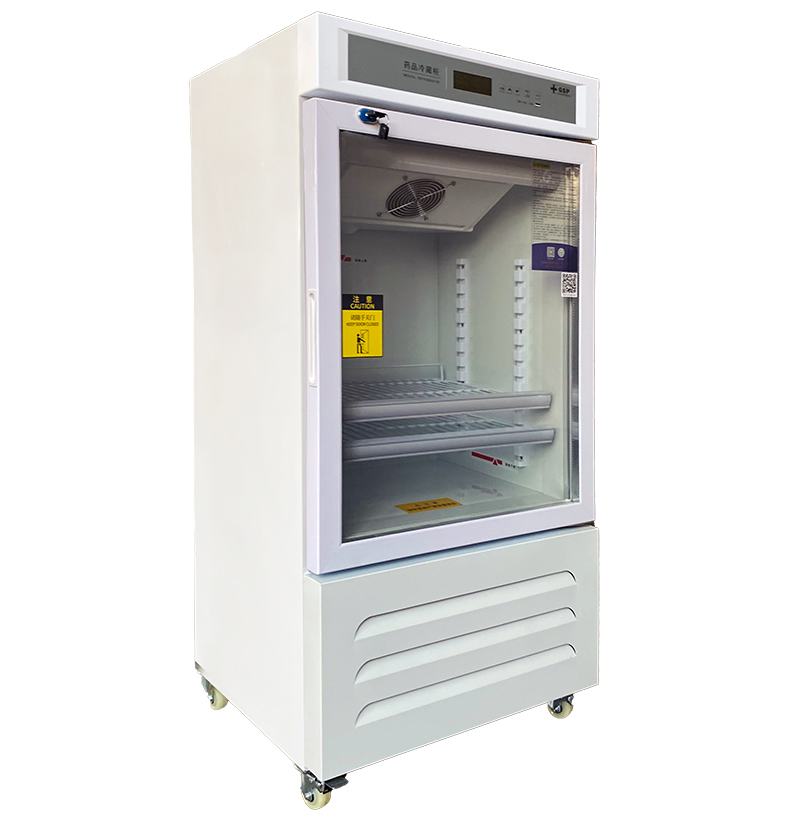

SM-150L 2-8°C Medicine Refrigerator
