SMH-50 Fully Auto 5-Part Hematology Analyzer

The fully automatic 5-Part blood cell analyzer uses multiple technologies for measurement, with high accuracy and no need for an external computer, making it convenient and fast.
  • Parameters

Technical Specification

Test principle WBC Differentiation Laser scattering method
flow cytometry method
WBC Count Optical method
RBC/PLT Count Impedance method
HGB Colorimetric method
Sample modes Venous whole blood, Capillary blood, Pre-diluted
Test modes CBC+DIFF
Throughput CBC or CBC+3DIFF 60T/H
Blood consumption Multiple sample modes 20μL
Report parameters No. of parameters 25
Details of parameters WBC, Neu#, Lym#, Mon#, Eos#, Bas#, Neu%, Lym%,
Mon%, Eos%, Bas%, RBC, HGB, HCT, MCV, MCH, MCHC,RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR, P-LCC
Research parameters No. of parameters 4
Details of parameters ALY#, ALY%, LIC#, LIC%,
Histograms (No.) 2 histograms for RBC and PLT
Scattergrams(No.) 1 BASO scattergram and 3 DIFF scattergrams
Applied reagents(No. of kinds) 4
Applied reagents Diluent, DIFF Lyse, LH Lyse, Probe Cleanser
Repeatability WBC ≤2%(3.5~15.0)*109/L
RBC ≤1.5%(3.5-6.0×10^12/L)
HGB ≤1.5%(110~180g/L)
MCV ≤1%(70~120 fL)
PLT ≤6.0%(100~149×10^9/L);
≤4.0%(150~500×10^9/L)
Linearity range WBC (0.00~100.00)×10^9/L
RBC (0.00~8.00)×10^12/L
HGB 0~250g/L
PLT 0~1000×10⁹/L
Bi-directional LIS or not Support
LIS protocol HL7
Languages Chinese, English
Size of screen 10.4 inches Touch screen
Storage 100000
External interface 1 LAN, 2USB
Printer Built-in thermal printer, Support for external printers
Operation environment Power requirements Vlotage: A.C. 100V~240V
Input power: ≤200VA
Frequency: 50/60Hz
Relative humidity 20-85%
Operation temperature 10℃~30℃
Atmospheric pressure 70kPa~106kPa
Dimension(mm)(L*W*H) 466.5*328*465
Net weight(kg) 30



Related Products

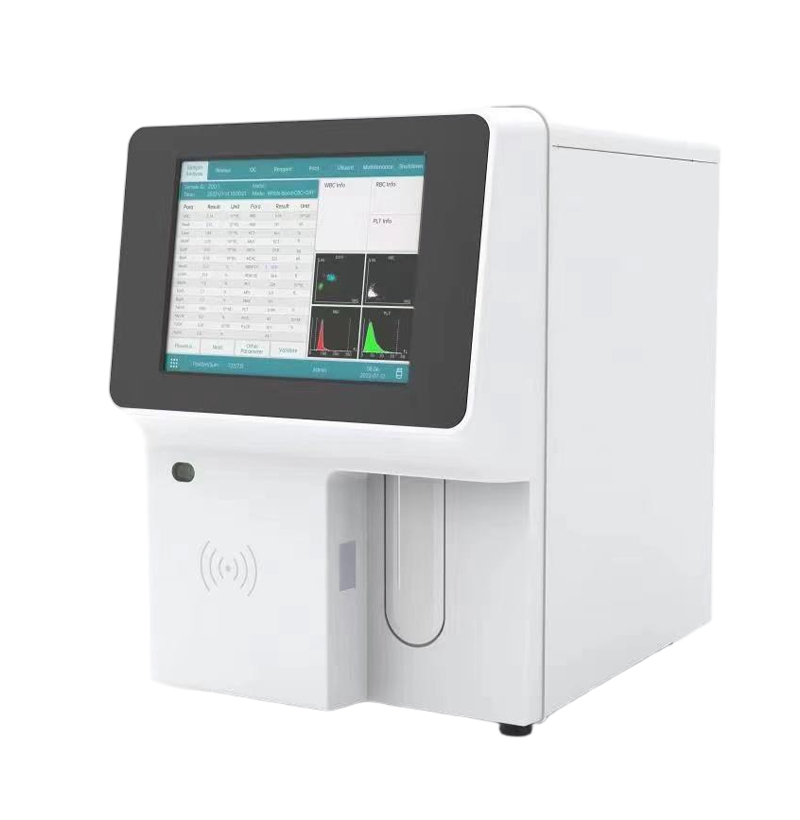

SMH-06S 5-Part Hematology Analyzer

Throughput: 60 samples/hour Principle: Tri-angle laser scattering and sheath flow for WBC differentiation andc counting, impedance for RBC and PLT, cyanide-free method for HGB Channels: 2 Aperture diameter: RBC/PLT chamber: 70um Parameters: 25+4 parameters: WBC, Lym%, Mon%, Neu%, Bas%, Eos%, Lym#,Mon#, Neu#, Eos#, Bas#, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, P-LCC, LIC%, LIC#, ALY%, ALY# Histograms: 4 scatter-grams, 2 histograms(including RBC, PLT histograms) HGB lamp: LED530nm Sample volume: Whole blood mode: 20ul, Pre-diluted mode: 20ul

SMH-03S 3-Part Hematology Analyzer

Throughput: 60 samples/hour Principle: Impedance for WBC,RBC,PLT; Cyanide-free method for HGB Channels: 2 Parameters: 21 parameters(including: WBC, Neu#, Lym#, Mid#, Neu%,Lym%, Mid%, RBC, HGB, HCT, MCV, MCH, MCHC,RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR, P-LCC Histograms: 3 histograms(including WBC,RBC,PLT histograms) Sample volume: Normal: 10ul, Prediluted: 20ul

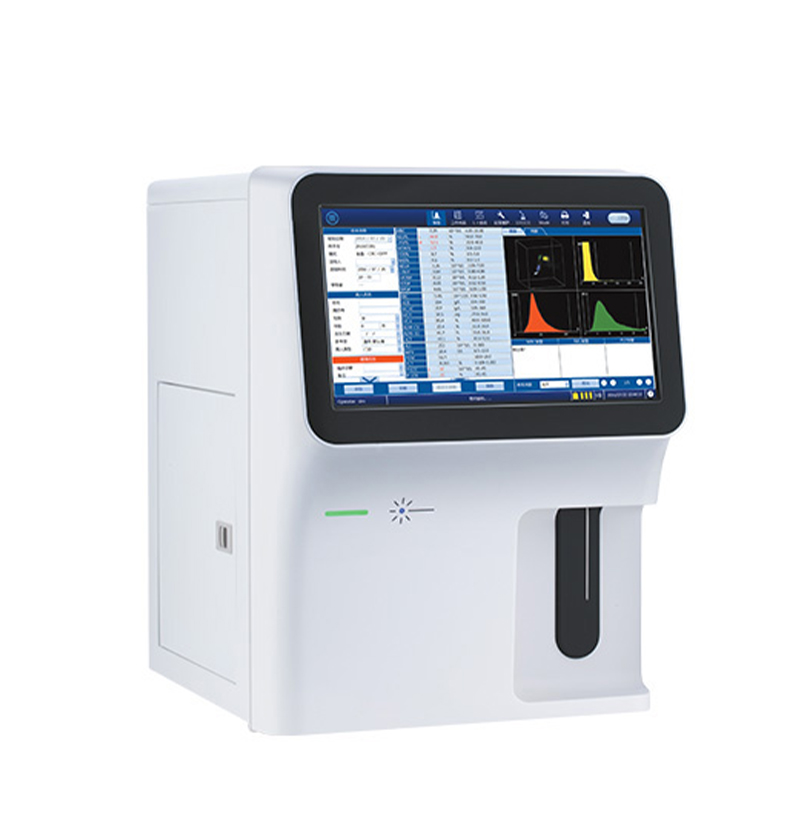

SMH-60B 5-part Auto Hematology Analyzer
