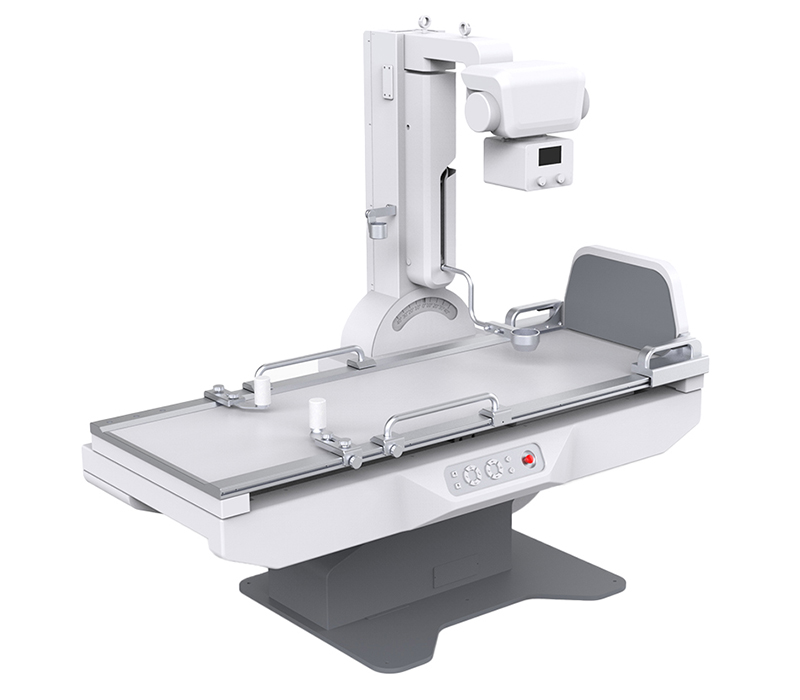

SMD-8500 Dynamic Digital Radiography and Fluoroscopy System
Suntra Multi-purpose R/F System is a flexible and compact system with various functions such as radiography, fluoroscopy, stomach examination, gastrointestinal tract examination, etc. Its wide-range movements and auto DR operations reduce the patient movements and make the operation easier and faster.
Fluoroscopy: Dynamic a-Si flat panel detector is designed for real-time imaging. The 17×17-inch image sensor has direct deposition CsI , which provides excellent low-dose imaging at frame rates up to 30 fps. IND is a digital fluoroscopic X-ray system, which can be used in both general radiography, fluoroscopy for gastrointestinal, urolog applications.
Radiography: Retractable tube arm, max SID is 1800mm. It could provide digital radiography of various body parts without blind area.
Fluoroscopy: Dynamic a-Si flat panel detector is designed for real-time imaging. The 17×17-inch image sensor has direct deposition CsI , which provides excellent low-dose imaging at frame rates up to 30 fps. IND is a digital fluoroscopic X-ray system, which can be used in both general radiography, fluoroscopy for gastrointestinal, urolog applications.
Radiography: Retractable tube arm, max SID is 1800mm. It could provide digital radiography of various body parts without blind area.
-
Features
◆High-performance and high-capacity with big focus and high speed, which is suitable for long-time diagnosis.
◆High inverting frequency and high voltage generator ensures output of constant DC.
◆Dynamic flat panel detector brings digital radiography and fluoroscopy of various positions directly.
◆ Strong and weak electricity separation and excellent EMC characteristics.
◆High density grid further improves X-ray quality and provides images with good effect.
◆Designed for low-dose fluoroscopic imaging
Specifications
Ambient Conditions
| Ambient temperature | 10℃～40℃ |
| Relative humidity | 30％～75％ |
| Atmospheric | 70～106kPa |
X-ray Generator
| Output power | 50KW |
| Frequency | 500kHz High frequency with inverter technology |
| Current (fluoroscopy) | 0.5～6.0mA |
| Voltage (fluoroscopy) | 40kV～125kV |
| Current (radiography) | 10mA~630mA |
| Voltage (radiography) | 40kV~150kV |
| Exposure time | 1～6300ms |
| mAs | 0.1mAs~630mAs |
X-ray Tube
| Anode type | Rotating Anode |
| Focal Spot value | 0.6mm /1.2mm |
| Maximum voltage | 150KV |
| Revolving speed of anode | 2800rpm |
| Inherent filtration | 1.0mmAl |
| Anode heat storage capacity | 300kHU |
| Maximum cooling rate of anode | 750W |
| Housing heat storage capacity | 900kJ |
X-ray detector(Flat Panel Detector)
| Type | Amorphous Silicon |
| Scintillator | Cesium Iodide |
| Active Area | 17x17Inch(43cm*43cm) |
| Active Pixel | 3072 × 3072 |
| Pixel Pitch | 139um |
| Limiting resolution | 36Lp/cm |
| Data acquisition time | ≤2s |
Collimator
| Type | Electric and multileaf collimator |
| Power | 150W; 24VAC 1 |
| Lamp timer | Automatic illumination with timer for lamp(30S) |
| Filtration | 1.2mmAL |
Mobile patient table
| Type | Table for gastrointestinal imaging |
| Tabletop lateral movement | 240mm(-120mm～+120mm) |
| Rotating range | -20°~+90° |
Mechanical movement
| SID | 1000mm～1800mm |
| Detector Cassette movement | 1100mm |
Workstation
| CPU | Intel i5 |
| Memory | 8GB |
| HDD | 500GB |
| Monitor | 24’’LCD |
| DICOM3.0 | Query for integration with any PACS |
| Functions | Import/export function |
| Image info | |
| Management of patient info | |
| Post processing | |
| Measurement etc. |
Configurations
| 1 | 50kW High-voltage X-ray Generator | One set |
| 2 | X-ray Tube | One set |
| 3 | Collimator | One set |
| 4 | 17*17 inch Dynamic Flat Panel Detector | One set |
| 5 | High-voltage Cables | One set |
| 6 | Grid | One set |
| 7 | Radiography/Fluoroscopy Table (Motor-driven) | One set |
| 8 | Image Capturing and Processing Software | One set |
| 9 | Computer | One set |
| 10 | 24 inch LCD Monitor | One set |
| 11 | Hand Switch | One set |
| 12 | DICOM 3.0 | One set |
| 13 | Manual | One set |
