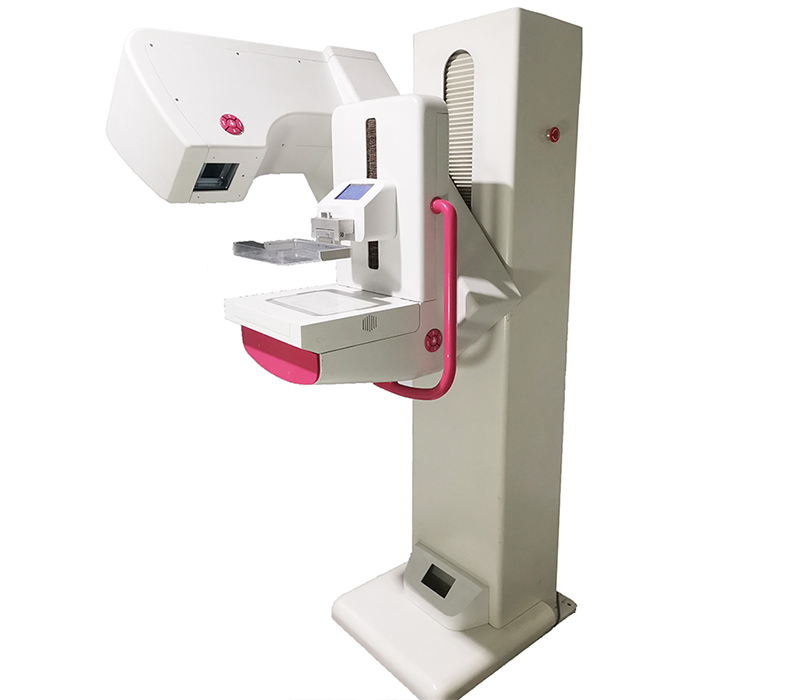

SMT-5900M Digital Mammography System

SMT-5900M Digital Mammography System is a professional equipment for breast diseases examination. It is suitable for early detection of mammary gland lesions.
This system adopts the latest technology of flat panel detector, which has a higher sensitivity to X-ray. Its resolution reaches the value of 60lp/cm. It can easily examine calcified lesion less than 0.1mm. By improving the accuracy and sensitivity of mammography diagnosis, it becomes a reliable tool to diagnose early stage of breast cancer.
  • Details

  • Parameters

  • Features

    ◆Professional mammography x-ray tube from Italian IAE with molybdenum provides extremely small focus spot, and owns high heat capacity. It guarantees high quality images and long working time.
    ◆Self R&D high-frequency high voltage generator uses dual-inverter technology, guaranteeing the stability of X-Ray, largely improving the clarity and quality of images with low dose.
    ◆Unique CMOS flat panel detector provides high-resolution images as it is sensitive to X-ray.
    ◆Self R&D ‘Console’ software with national patent, provides strong capabilities of post processing. It has leading post-processing algorithm of breast, which could bring you perfect mammary images.

    ◆24’’ LCD display.
    Features

Specifications

Ambient Conditions

Ambient temperature 10℃~40℃
Relative humidity 30%~75%
Atmospheric 70~106kPa



X-ray Generator

Output power 5.0KW
Frequency 80-200KHZ
Current 10-200mA
Voltage 20-40KV
Exposure time 5-10000ms
mAs 0.5mAs-560mAs
Self-diagnostic system Tube overload protection



X-ray Tube

Brand IAE (Italy)
Anode type Rotating Anode
Focal spot value 0.1mm /0.3mm
Maximum voltage 40KV
Anode heat storage capacity 300KHU
House heat storage capacity 426KHU
Target material Molybdenum
Anode rotation speed 10000rpm
Maximum anode heat dissipation rate 500W



X-ray detector ( Flat Panel Detector)

Scintillator Cesium Iodide
Active area 235*290mm
Active pixel 2762*3408
Pixel pitch 85um
AD Conversion(bit) 16
Spatial resolution 60Lp/cm



Mechanical Device

SID 650mm
Exposure field 240mm*300mm(Maximum)
Up-down movement of c-arm ≥600mm
Rotational angles of c-arm -90°~+90°(Electromagnetic lock)
Rotational angles of tube -30°~+30°



Compression Paddle

Movement type Electric
Up-down movement range ≥210mm
Size of compression paddle 260mm*180mm
Pressure range 0~20kg (0.1kg step)



Workstation

Dual-core CPU 3.3GHz
Memory 4GB
HDD 500GB
Discrete Graphics 1920*1200
Monitor 24’’ LCD
DICOM3.0 Query for integration with any PACS
Functions Import/export function
Image info
Management of patient info
Post processing
Measurement etc.



Configurations

1 High-voltage X-ray Generator One set
2 X-ray Tube One set
3 Collimator One set
4 Flat Panel Detector One set
5 High-voltage Cables One set
6 Electric Mechanical Frame One set
7 Control Console One set
8 Image Capturing and Processing Software One set
9 Computer One set
10 24″ LCD Monitor One set
11 Foot Switch One set
12 Manual One set
