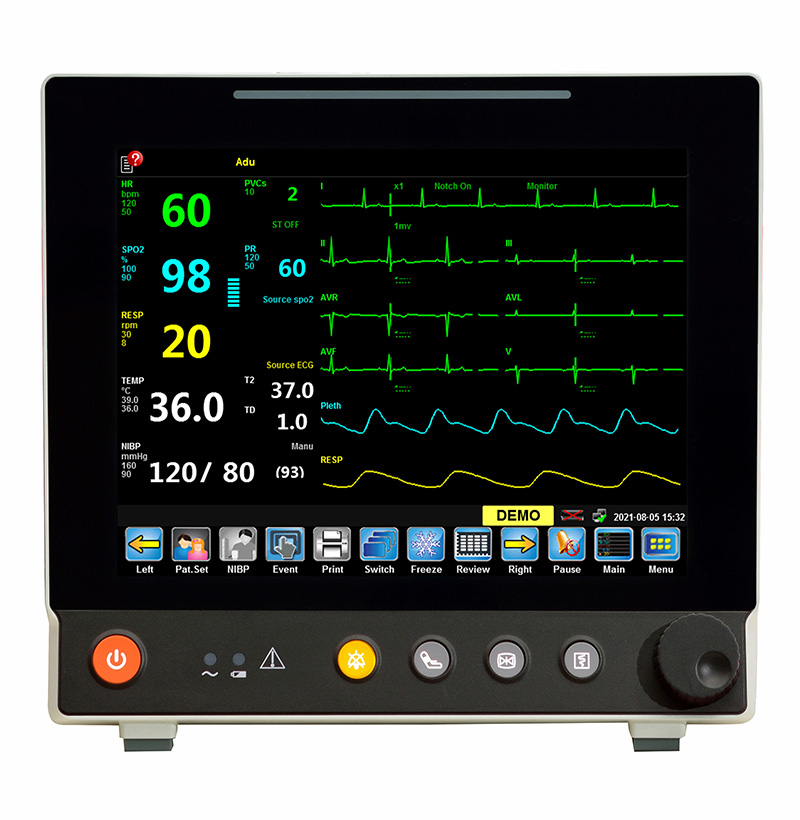

SM-200V Patient Monitor

Technical Specification

Physical Specification

Display

12.1” TFT LCD screen

Resolution: 800 x 600 (1024 x 768 optional)

Number of traces: 8, up to 12 ECG waveforms

Dimension: 310×292×174mm(W×H×D)

Weight: < 4 kg under standard configuration

LAN: 1 standard RJ45 port

WLAN:IEEE 802.11b/g/n

USB: 2 USB connectors

ECG

Lead type :3-lead,5-lead,12-lead(optional)

ECG waveform:2 channels,7 channels, 12 channels

Display sensitivity(wave gain):

1.25mm/mV(×0.125), 2.5mm/mV (×0.25), 5mm/mV (×0.5),

10mm/mV (×1.0), 20mm/mV (×2.0)，40mm/mV (×4.0)

Wave sweep speed:

6.25mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s

Bandwidth

Diagnostic mode: 0.05Hz~100Hz

Monitor mode: 0.5Hz~40Hz

Surgery mode: 1Hz~20Hz

Strong filter mode: 5Hz~20Hz

CMRR>100dB

Notch: 50/60Hz notch filter can be set to on or off

Differential input impedance>5MΩ

Electrode polarization voltage range: ±400mV

HR range: 15 – 350 bpm

ST Measurement Range: -1.0 – +10 mv

Baseline recovery time<3s after defibrillation (in monitor and surgery mode)

Calibration signal:1mV (peak – peak), accuracy ±3%

Pulse Rate

Range: 30~300bpm

Resolution: 1bpm

Accuracy: ±2bpm (non-motion) ±5bpm (motion)

Refreshing rate: 1s

SpO2

Measurement range : 0-100%

Resolution: 1%

Perfusion index display

Accuracy: ±2%（70-100%， Adult/Pediatric);

±3%（70-100%， Neonate);

0-69%,unspecified

Refreshing Rate: 1s

RESP

Measurement method : Thoracic electrical bioimpedance

Operation modes: Auto/Manual

Measuring lead: Lead I, II

Measurement range: Adult:0~120 bmp;

Neonate/Pediatric:0~150bpm

Resolution: 1 bpm

Apnea alarm delay:10s,15s,20s,25s,30s,35s,40s

Apnea alarm: Selectable

Wave gain: ×0.25, ×0.5, ×1, ×2, ×3, ×4, ×5

Respiratory impedance range: 0.5-5Ω

Baseline impedance: 500-4000Ω

Gain: 10 grades

Scan speed: 6.25mm/s, 12.5 mm/s, 25mm/s

TEMP

Accuracy:±0.1℃ or ±0.2°F

Measurement range: 0.1 ~ 50℃（32.1~122℉）

Channel：Two channels

Resolution: 0.1℃

Parameters：T1,T2 and TD

NIBP

Measurement method : Automatic oscillometric method

Operating mode:Manual, automatic, continuous

Measurement unit: mmHg/kPa selectable

Typical measurement time: 20~40s

Measurement type: Systolic, Diastolic,Mean

Measurement range (mmHg)

Range of Systolic pressure: Adult 40-270

Pediatric 40-200

Neonatal 40-135

Range of Diastolic pressure: Adult 10-210

Pediatric 10-150

Neonatal 10-100

Range of Mean pressure: Adult 20-230

Pediatric 20-165

Neonatal 20-110

Measurement accuracy

Maximum average error: ±5mmHg

Maximum standard deviation: 8mmHg

Resolution: 1mmHg

Interval:1,2,3,4,5,10,15,30,60,90,120,180,240,480minutes

Overpressure protection: Software and hardware, double safety protection

Cuff pressure range: 0-300mmHg

Recorder (Optional)

Built-in, Thermal dot array

Horizontal resolution :16 dots/mm (25 mm/s paper speed)

Vertical resolution:8 dots/mm

Paper speed:25 mm/s, 50 mm/s

Number of waveform channels:3

Masimo SET SpO2(Optional)

Measurement range : 0-100%

Resolution: 1%

Accuracy: ±2%（70-100%， Adult/Pediatric,non-motion,

low perfusion);

±3%（70-100%， Neonate,non-motion);

±3%（70-100%， motion);

0-69%,unspecified

Refreshing Rate: 1s

Maintream CO2(Optional)

Measurement range: 0-19.7%,150mmHg, or 0-20kPa

Resolution: 0.1mmHg

Measurement accuracy

0 – 40 mmHg: ± 2 mmHg

41 – 70 mmHg: ± 5% of reading

71 – 100 mmHg: ± 8% of reading

101 – 150 mmHg: ± 10% of reading

Respiration rate: 3-150 bpm

Respiration rate accuracy: 1％ ±1bpm

Warm-up time: 97% within 8s, full accuracy within 20s

Sidetream CO2(Optional)

Measurement rage: 0-20%（0－150mmHg）

Accuracy: < 5.0% CO 2: ± 2 mmHg

> 5.0% CO 2: < 6% of reading

Respiration rate: 2 ～ 150 BPM

Respiration rate accuracy: 1％ ±1BPM

Warm-up time: 97% within 45s, full accuracy within 10 min

Rise times(t10-90%): About 100ms, when flow is 100 ml/min, 1.5m sampling tube

Delay time: <3sec when flow is 100 ml/min, 1.5m sampling tube

IBP(optional)

Channel:2-channel or 4-channel

ART: 0 to 300 mmHg

PA: -6 to 120 mmHg

CVP/RAP/LAP/ICP : 0 to 40 mmHg

Measurement range: P1/P2 -50 to 300 mmHg

Resolution:1mmHg

Accuracy: ±2% or ±1mmHg, whichever is greater(without sensor)

Sensitivity: 5uV/mmHg/V

Impedance range: 300 to 3000Ω

Operation Environment

Power: AC 100-250V, 50/60Hz

Temperature: 5-40℃

Humidity: <80%

Patient Range: Adult, Pediatric, Neonate
