SM-IP3 Infusion Pump

KVO Status: Auto progress KVO mode. Keep the patients veins open
Pressure Monitoring: Over voltage protection. The blocking pressure can be detected precisely and sensitively by Pressure sensor installed in the push handle
Data Storage: Data storage function, convenient for medical staff to review historical alarm information
Audible Alarm: Sensitive alarm reminder ti ensure injection safety in real time
One-Key Operation: Fulfill conversion between d/min and ml/h
Safe And Reliable: System self-test is completed as turning on,which ensures safe work; Real-time bubble monitoring, more secure and reliable
  • Parameters

Technical Specification

Show • 3 inch monochrome LCD display
Infusion Speed • 1ml/h – 1200ml/h can be incremented or decreased by 0.1ml/h
Infusion Volume Accuracy Error • ±5% (ordinary infusion set)
Infusion Volume Preset • 0.1ml – 9999.9ml can be decreased in increments of 0.1ml
Blocking Pressure • High: 110kpa   Medium: 80kpa   Bottom: 40kpa”
KVO • 1ml/h – 5ml/h can be decreased in increments of 1ml/h
Voltage • Power supply voltage AC 100~240VAC,
• power frequency: 50/60Hz battery input 9.5V-12.6V
Power Consumption • Not more than 35VA
Built-In Battery Working Time • d.c11.1V not less than 2000mA,not less than 12 hours
Dimensions and Weight • 90*205*151mm     • ≈1.5kg
Safety Classification • Class I, type BF general equipment with internal power supply
Waterproof Level • IPX1
Working Environment • Ambient temperature: 10~30℃
• Relative humidity: 30%~75%• Atmospheric pressure: 860hPa–1060hPa

• The infusion pump should work in an environment where there is no strong shock and vibration, water and other fluids cannot invade the inside of the device, and there is no corrosive gas around

Storage Environment • The packaged infusion pump should not exceed 93%

(no condensation), and no corrosive gas will pass through a good room, and the indoor temperature conditions are: -20℃~+55℃



Related Products

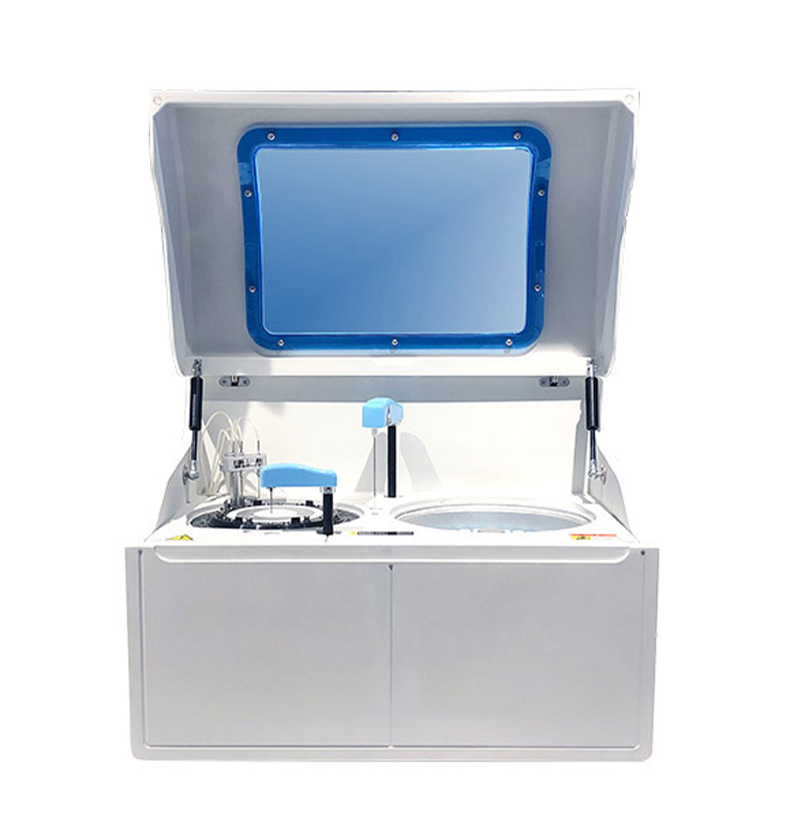

SMB-210 Automatic Biochemistry Analyzer

It is used to quantitatively analyze the clinical chemistry of human serum, plasma, urine, cerebrospinal fluid and other samples. Do not use for other purposes. 1. 37 sample positions.             2. 28 reagent positions.  3. 48 reaction cuvettes.        4. 200 tests per hour.       5. Probe with anti-collision function, liquid level detection function.

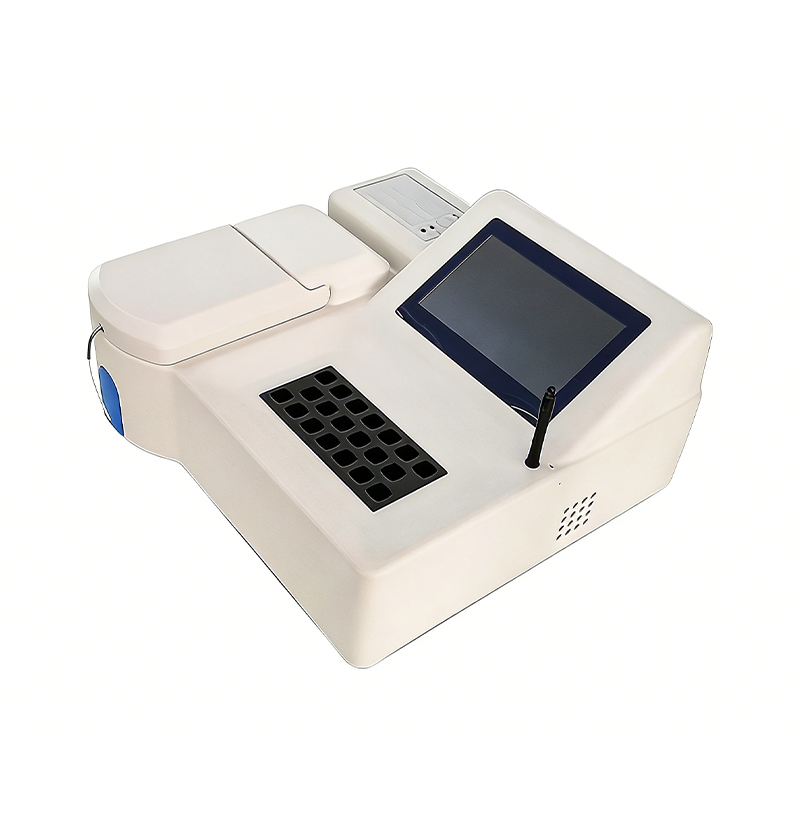

SM-C13 Semi-auto Chemistry Analyzer

It is a microcomputer-based in-vitro diagnostics instrument uniting optics, mechanics, and automation control in one. It is used together with the related reagents for the quantitative determination of biochemical items, widely applied to various hospitals and research institutes, with the characteristics of high precision, excellent repeatability, and complete function. 1. 7.0 inch LCD touch screen, graphical interface is easy to use. 2. Large memory space, can store 300 test items, 20, 000 test results. 3. Built-in thermal printer to print measurement results and flag abnormal results. 4. Incubator intelligent temperature control, room temperature, 25.0℃, 30.0℃, 37.0℃ four temperature options.

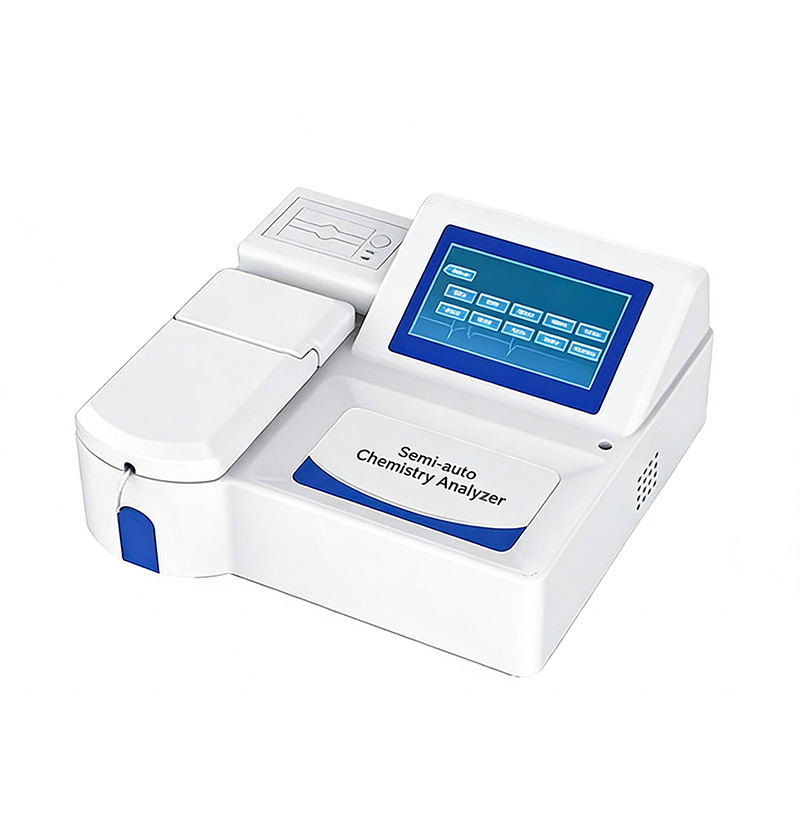

SM-C12 Semi-auto Chemistry Analyzer

Semi-Auto Chemistry Analyzer consists of a microprocessor circuit control system, optical colorimetric system, LCD display, and an operating keyboard. It is widely used in the routine biochemical testing of human serum in medical units. 1. 7.0 inch LCD touch screen, graphical interface is easy to use. 2. Large memory space, can store 144 test items, 5600 test results. 3. Built-in thermal printer to print measurement results and flag abnormal results.

SMT-56P Binocular Handheld Slit Lamp Microscope

The optical path the angular stereo design, the observation is comfortable, the image is clear; Lighting with LED light source; Large battery capacity, uniform spot, easy to switch, long service life, patients feel more comfortable; Total 900g weight, easy to operate and practical enough.

SMT-51S Digital Slit Lamp Microscope

All-in-one computer, Dual screen real-time dynamic display. Professional camera, 24.2 megapixels display HD images. Printer stand, 440mm×410mm×380mm Adaptive carefree Print freedom.

SMT-50T Slit Lamp Image System

The system is developed to meet the needs of ophthalmology users home and abroad,with a professional medical database; It is used to analyze and process the photos and videos captured by the digital slit lamp,and to manage the information of the patients. The microscope light path adopts the intersection Angle arallel design,good three-dimensional sense,wide field of vision; Optical lens made of German optical glass,reduce optical distortion, claity and depth of field significantly improved; All lenses are treated by multi-layer anti-reflection,moisture-proof and anti-mold coating,which always maintains good optical effect; Imported light source,small heat, high brightness,uniform spot; Background lighting system in dark room observation, shooting effect is especially obvious.
