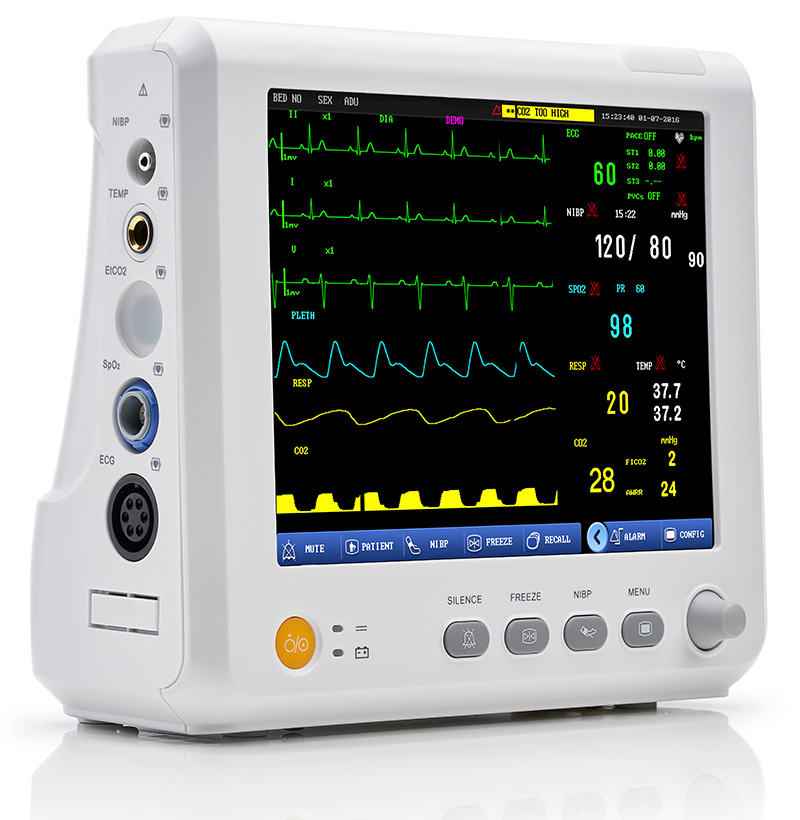

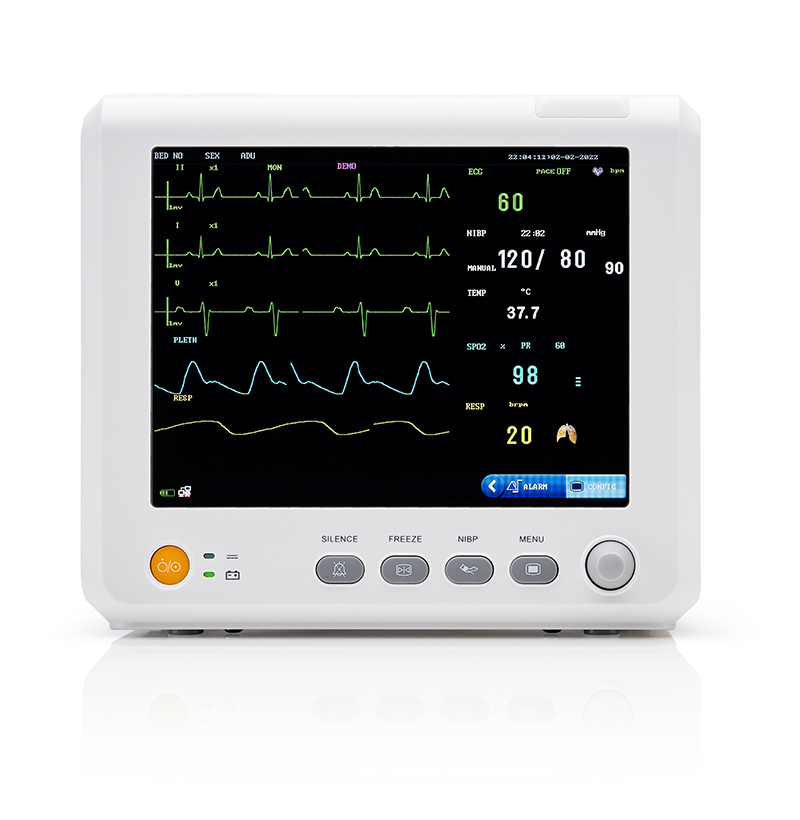

SM-M8 Patient Monitor

Features

Application Range

Adult/Pediatric/Neonatal/Medicine/Surgery/Operating Room/ICU/CCU

Display

8 real color LED screen

Environment

Operating environment :Temperature: 0 ~ 40 ℃

Humidity:≤ 85 %

Pressure: 86.0 kPa ~ 106.0kPa

Transport and Storage environment:

Temperature: -20 ~ 55 ℃

Humidity:≤ 93 %

Pressure: 86.0 kPa ~ 106.0kPa

Power Requirements

AC: 100 ~ 240V, 50Hz/60Hz

DC: Built-in rechargeable battery

Battery: 11.1V 24wh Li-ion battery

2h operating after full charge

5min operating after low battery alarm

Dimension and Weight

Equipment: 210mm x 85mm x180mm; 1.40 kg

Package: 250mm x175mm x 240mm; 3.4 kg

Date Storage

Trend diagram/table: 720h

NIBP review:10000 events

Wave review:12h

Alarm review:200 alarm events

Support drug concentration titration analysis

ECG

5 Leads: RA, LA, LL, RL, V

Lead mode: I, I, II, AVR, AVL, AVF, V

Gain: x 1.25mm/mV,2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV (error ≤ 5%)

Sweep speed: 6.25mm/s, 12.5mm/s,25mm/s,50mm/s (error ≤ ± 10%)

Bandwidth: Surgery 1 ~ 25 Hz

Monitor 0.5 ~ 40 Hz

Diagnostic 0.05 ~ 130 Hz

Sensitivity: >200 μ V P-P

CMRR: ≥ 112dB

Differential Input Impedance: >5M

ohm Electrode Offset Potential: ±300mV

Polarization Voltage: ≥ ± 500mV

Input Impedance: ≥ 5 M

Calibration Voltage: 1mV±5%

ST Segment

ST Segment Range: -2.0mV ~ +2.0mV

Accuracy: 0.02mV

NIBP

Method: Oscillometry

Measure mode: Manual, Auto, STAT

Measure interval in auto mode:

1~5/10/15/30/60/90/120/180/240/480min

Measure period in STAT mode: 5min

Pulse rate range:40 ~ 240bpm

Measure & alarm range:

Adult

SYS 40 ~ 280mmHg

DIA 10 ~ 220mmHg

MEAN 20 ~ 240mmHg

Pediatric

SYS 40 ~ 220mmHg

DIA 10 ~ 160mmHg

MEAN 20 ~ 170mmHg

Neonatal

SYS 40 ~ 135mmHg

DIA 10 ~ 100mmHg

MEAN 20 ~ 110mmHg

Static pressure measurement

Range:0 ~ 300mmHg

Accuracy: ±3mmHg

Resolution:1mmHg Accuracy:

Max. Mean Error: ±5mmHg

Max. Standard Deviation: 8mmHg

Overpressure protection:

Adult  300mmHg

Pediatric  240mmHg

Neonatal 150mmHg

SpO2

Measurement range: 0 ~ 100%

Resolution: 1%

Accuracy: 70% ~ 100% ±2%

40% ~ 69%±3%

Pulse Rate

Measure/alarm range: 20 ~ 300bpm

Resolution:1bpm

Accuracy: ±3bpm

RESP

Method: impedance between RA-LL

Resp Impedance range: 0.3 ~ 3 Ω

Base Impedance range: 200 Ω~ 4000Ω

Bandwidth: 0.3 ~ 2.5Hz

Gain: ×0.25, × 0.5, x 1, x 2, × 4

Resp rate:

Measurement Range

Adult  0 ~ 120BrPM

Neonatal/Pediatric 0 ~ 150BrPM

Resolution:1BrPM

Accuracy: 7 ~ 150BrPM (±2BrPM)

0 ~ 6BrPM (unspecified)

Apnea Alarm:

10 ~ 40s

TEMP

Channel 2

Measure & alarm range: 0 ~ 50 ℃

Resolution:0.1 ℃

Accuracy (no sensor): ±0.1 C (0~50 ℃)

Standard accessories

NIBP cuff & tube

ECG cable & electrodes

Sp02 sensor

TEMP probe

Lithium-ion battery

Power cable

Operator’s manual

Optional accessories

Touch screen

Trolley bracket

Hanging bracket

Monitor recorder

Vehicle-mounted power supply
