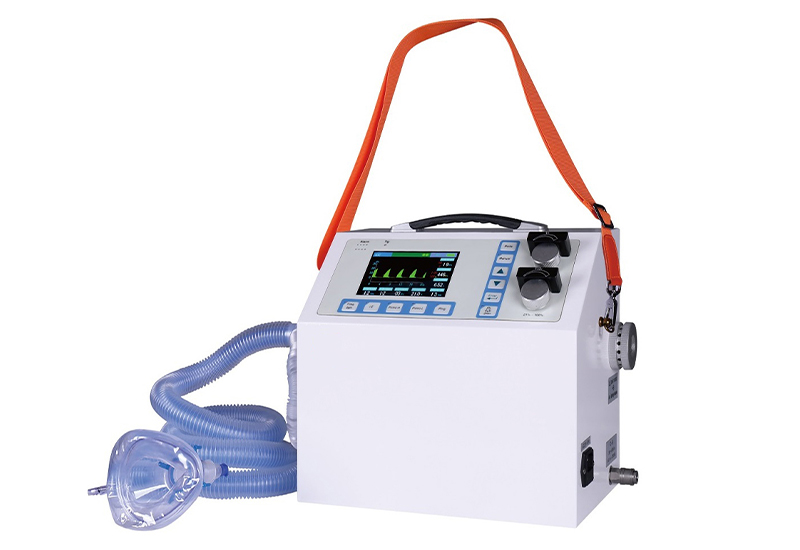

SMT-40E Medical Ventilator

  • Details

  • Parameters

  • Feature

    No external gas source can be independently long-term work (Bring your own air)
    The operator control panel is with clear LCD display. Easy to operate.
    Whole body is compact, easy to install on a ventilator tower crane, ambulance.
    Friendly interface, easy operation and intuitive.
    Offers three power: AC, Car Power, Built-in battery
    Self-powered support ventilator work more than two hours.
    Feature

Specifications:

Main Unit

Application: Adult and Child

Electronic control electronic drive

Working mode: Time switch

Respiratory modes: A/C, SIMV, SIGH,SPONT, Manual

Tidal volume:          0~1500mL

Frequency:            4~60bpm

I:E                   1:9~4:1 (adjustable)

FiO2:                  21% ~ 100% Continuously adjustable

PTRIG:                -2 ~0 kPa

High pressure limitation:  2 ~6 kPa

Low pressure limitation:   0 ~2 kPa

PEEP                  0~2kPa,(optional)

Alarm Mute:             ≤120s



Monitoring parameters:

Tidal volume, MV, Total frequency, I:E rate, Ppeak, O2 concentration, Trigger pressure.



Alarm parameters:

Inadequate supply of oxygen, Plimt-H, Plimit-L, Power outage, CPAP,  Choke,  VT-Low, High oxygen concentration, Gas missing.

Power supply: AC220V, 50 Hz.



Safety

Multiple pressure protection devices
