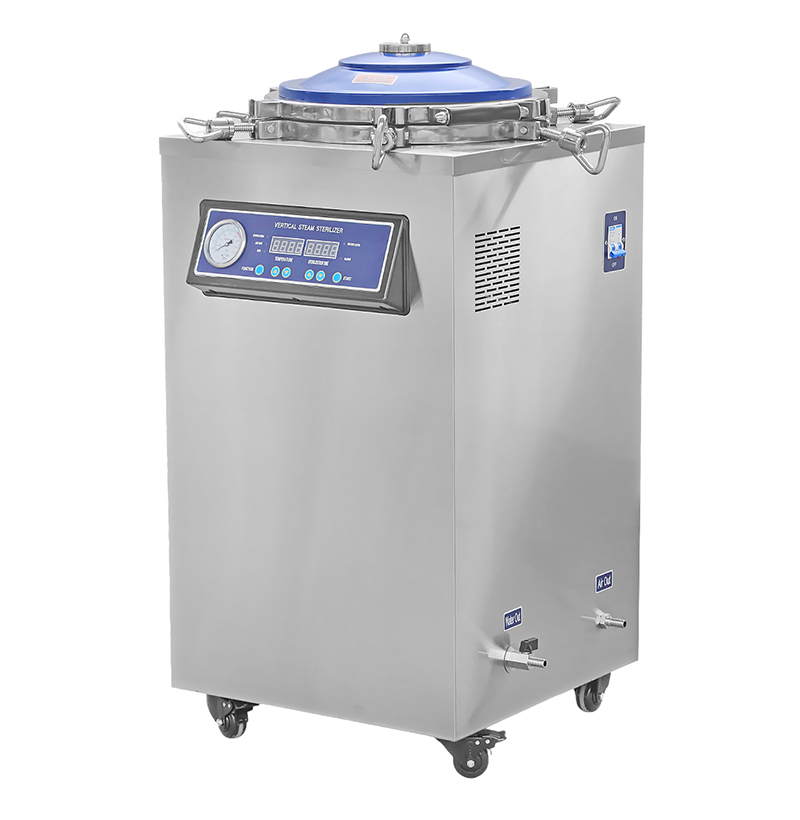

GLS-B Series Vertical Steam Sterilizer (Bolt Digital Display Automatic Control)

Bolt-type
High-quality stainless steel material
Microcomputer automatic control with adjustable sterilization parameters
Digital display and mechanical buttons
Equipped with a standard test interface
Stainless steel inner cylinder (or mesh basket)
Automatic protection functions: over-temperature protection, over-pressure self-relief protection, low water level protection, anti-dry heating protection
Buzzer reminder upon completion of sterilization, with automatic shutdown
Automatic discharge of cold air and automatic discharge of steam after sterilization
  • Parameters

Introduction

The vertical sterilizer is a safe, reliable and automatically controlled sterilization equipment which is  composed of an evaporator, a microcomputer control system, multiple safety protection devices and other components. It is an ideal equipment for medical and health institutions, scientific research units and other organizations to sterilize surgical instruments, dressings, utensils, culture media, etc



Technical Specification

Model GLS-35B GLS-50B GLS-75B GLS-100B GLS-120B GLS-150B
Volume 35L 50L 75L 100L 120L 150L
Power 2.5kw 3.5kw 4.5kw 4.5kw 4.5kw 6kw
Voltage AC 220V 50Hz
Design pressure -0.1~0.25Mpa
Design temperature 139°C
Rated working pressure 0.22Mpa
Rated working temperature 134°C
Sterilization temperature range 116 ~ 134°C
Sterilization time range 4 ~ 120 min
Drying time range /
Chamber size(mm) Φ300×450 Φ350×515 Φ400×585 Φ450×620 Φ450×720 Φ500×747
Bucket dimension(mm) Φ275×395 Φ325x235x2 Φ375x265x2 Φ425x275x2 Φ425x315x2 Φ475x365x2
(Optional)basket dimension(mm) Φ270×380 Φ320x220x2 Φ370x250x2 Φ420x265x2 Φ420x310x2 Φ470x340x2
Outer dimension(mm) 436x473x850 544x536x985 586x576x1072 617x627x1135 617x627x1205 660x676x1255
Packing size(LxWxH)(mm) 550x500x900 580x630x1100 630x680x1190 690x650x1230 690x650x1330 750x700x1370
Gross/net weight(kg) 58/41kg 75/53kg 84/61kg 104/78kg 105/79kg 122/90kg
