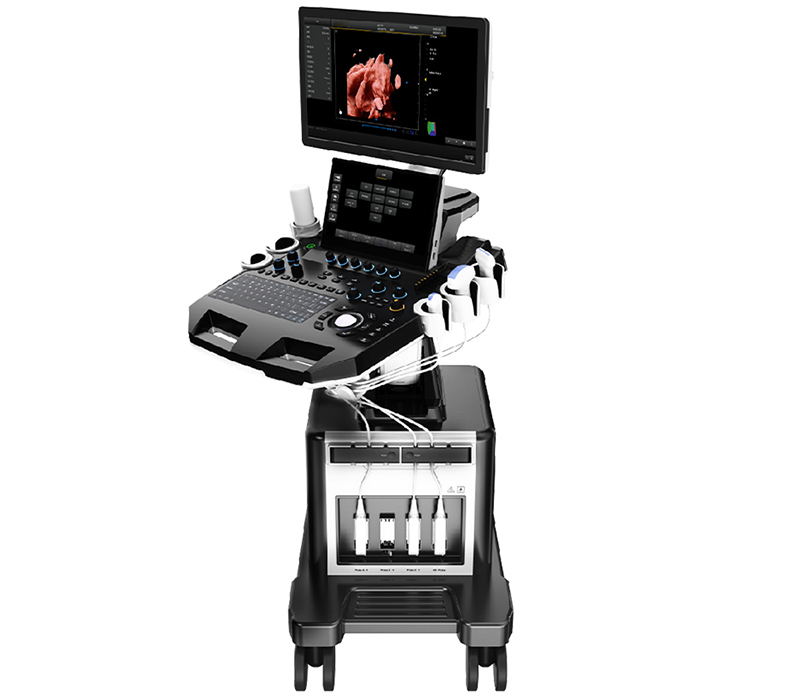

SM-40T 3D_4D_5D Trolley Digital Color Ultrasound Scanner

Technical Specifications

1. Product Name: Color Ultrasonic Diagnostic Apparatus

1.1 Structure type: Dual-screen trolley type

2. Purpose and applications:

2.1 To meet the basic hospitals in the abdomen, obstetrics, gynecology, heart, urinary system, small organs, superficial, blood vessels, pediatrics, neonatal, muscle, physical examination and other inspections and diagnosis.

3. Main specifications and system overview:

3.1 Operating system: Windows 10

3.2 Pulse Wave Doppler

3.3 Directional Energy Doppler

3.4 Real-time triple synchronization

3.5 Spatial Composite Imaging

3.6 Tissue Harmonic Imaging

3.7 2B/4B Imaging

3.8 Support system languages: Chinese, English, French, Russian, Spanish.

3.9 Standard monitor size: 21.5 inch, high-definition medical grade LCD display, and 13.3 inch touch screen

3.10 Integrated clipboard: display the saved images at the bottom of the screen, which can be directly

transferred or deleted

3.11 With on-site upgradeable functions

3.12 Preset conditions: For different inspections, preset inspection conditions for optimized images, reducing adjustments during operation, and commonly required external adjustments and combined adjustments

3.13 Support real-time 3D imaging function (3D/4D/5D)

3.14 Probe ports: 4 active

3.15 Trapezoidal Imaging

3.16 One-key auto optimization

4. Multiple frequency of different probes：

Convex probe: 2.0MHz /2.5MHz/3.0MHz / 3.5MHz/4.0MHz / 5.0MHz/H4.0MHz / H5.0MHz,（Depth:

30-255MM）

Linear probe：6.0MHz /7.5MHz / 8.5MHz / 10.0MHz/12.0MHz / H10.0MHz（Depth:20-128MM）

Trans-vaginal probe：4.5MHz / 5.0MHz / 6.0MHz / 6.5MHz / 7.0MHz / 9.0MHz / H8.0MHz（Depth:30-156MM）

Micro convex probe (R15): 4.5MHz/5.0MHz / 6.0MHz/6.5MHz/7.0MHz/9.0MHz / H8.0Mhz (Depth

30-111MM)

Trans-rectal probe: 4.0MHz/6.5MHz / 9.0MHz /H8.0Mhz（Depth:20-110MM）

Phased array probe：2.0MHz/2.5MHz/3.0MHz /3.5MHz/4.0MHz/5.0MHz/H3.0Mhz /H4.0M

（Depth:100-244MM）

Volume probe：2.0MHz/3.0MHz/4.0MHz/4.5MHz /5.5MHz/6.0MHz /H5.0MHz（Depth:30-237MM）

The above probes have harmonic frequencies

Each probe has a selection of specialist and organ modes for quick access for diagnostic

5. 2D mode

5.1 Gain: 0－100, single step 1, visible and adjustable

5.2 TGC: 8 segment adjustable

5.3 Dynamic range: 20-280dB, 20 levels visible and adjustable

5.4 Pseudo color: 12 kinds, visible and adjustable

5.5 Sound power: 5%－100%, single step 5%, visible and adjustable

5.6 Body mark: 6 kinds

5.7 Number of focus: max 6

5.8 Gray Scale: 0-7, visible and adjustable

5.9 Filtering: 0-4

5.10 Scanning range: 50%-100%

5.11 Frame related: 0-4, visible and adjustable

5.12 Real-time display of 14 parameters such as sound power, probe frequency, dynamic range, pseudo color, gray scale, etc., which are adjustable

5.13 Scanning line density: high, medium and low adjustable

5.14 Noise reduction: 0-14

5.15 Pseudo-color spectrum: 0-11

5.16 Support frequency compound

6. Color Imaging Mode:

6.1 Color deflection: available

6.2 Color frame related: 0-12 levels, visible and adjustable

6.3 Color map: 0-3 levels, visible and adjustable

6.4 Color flip: adjustable

6.5 B/C split screen synchronous display function: available

6.6 Color baseline: 11 levels, visible and adjustable

6.7 Color line density: high and low adjustable

6.8 Wall filter: 0-5 level adjustable

7. Pulse Wave Doppler Mode

7.1 Sampling volume angle correction: -80°～80° adjustable

7.2 Sampling volume: 0.5mm-20mm visible and adjustable

7.3 Frequency: 2.5MHz and 3.0MHz visible and adjustable

7.4 Baseline: 11 levels adjustable

7.5 Pseudo-color spectrum: 0-5

7.6 Display layout: 4 kinds, visible and adjustable

7.7 Pseudo-color: 6 kinds adjustable

*7.8 Speed scale: 3-2288cm/s

7.9 Spectrum envelope function: real-time automatic spectrum envelope, manual spectrum envelope and other modes are available, the system automatically analyzes and displays: PSV, EDV, RI, PI,  S /D , ACC, HR and other data

7.10 Grayscale: 0-7

7.11 Wall filter: 0-12

7.12 Dynamic range: 10-95dB, single step 5

7.13 Noise reduction: 0-60

7.14 Volume: 0-100

8. Real time 3D Imaging Mode

8.1 Fast angle: support 0°, 90°, 180°, 270° rotation of the 3D window image

8.2 Display layout: support “double frame”, “four frame”, “single frame” image display

8.3 Reconstruction modes: RealSkin, surface, Max, Min, XRax five reconstruction modes

8.4 Pseudo-color display: support 0-7 level adjustment

8.5 Image magnification: support 5 levels

8.6 Contrast: 0%-100%

8.7 Threshold: 0%-100%

8.8 Smooth: 3 levels adjustable

8.9 Pseudo-color: 7 levels adjustable

8.10 X-axis, Y-axis, and Z-axis rotation support adjustable

8.11 Brightness: 0%-100%

9. 4D Imaging Mode

9.1 Fast angle: support 0°, 90°, 180°, 270° rotation of the 3D window image

9.2 Display layout: support “double frame”, “four frame”, “single frame” image display

9.3 Reconstruction modes: RealSkin, surface, Max, Min, XRax five reconstruction modes

9.4 Pseudo-color display: 0-7 levels adjustable

9.5 Image magnification: 5 levels

9.6 Contrast: 0%-100%

9.7 Threshold: 0%-100%

9.8 Smooth: 3 levels adjustable

9.9 Pseudo-color:7 levels adjustable

9.10 X-axis, Y-axis, and Z-axis rotation adjustable

9.11 Line density: 2 levels adjustable

10. Measurement and analysis functions:

10.1 General measurement of distance, area, angle, time, slope, heart rate, speed, acceleration, neck

transparent layer, spectrum trace, resistance index/pulsation index, etc.

10.2 Obstetric measurement: weight measurement formula: 13 kinds for option

10.3 The color and type of the measuring line can be adjusted(including the activation color and the

completion color)

10.4 The display position and font size of the measurement results can be adjusted

10.5 Measurement packages: abdomen, obstetrics, urology, etc.

11. Picture and text management system: Picture saving format: BMP/DICOM/JPEG as default

11.1 Built-in 256GB SSD to start fast and stable

11.2 Cine loop: 600 frames

11.3 Built-in file information management system: with record number, name, inspection number, inspection

date, etc., and can search and manage by number, inspection number, name, etc.

11.4 Report types: 17 kinds

11.5 One-key quick report graphic management

12. Interfaces

4*USB ports, 1*Video, 1*S-Video, 1*DVI, 1*HDMI, 1*RJ-45

13 Configurations:

13.1 Color Ultrasonic Diagnostic Apparatus host *1 set

13.2 Probe options:

Convex probe

linear probe

Micro-convex probe R15

Phased array probe

Trans-vaginal probe

4D volume probe

13.3 Optional accessories: Thermal printer, puncture guide frame, gel warmer etc.

13.4 Standard warranty period: 2 years, including machine and probes

13.5 Life-long maintenance after the expiration of the warranty period, and free upgrade and maintenance of the workstation software involved
