SM-X6 Fully Digital Echo Doppler System
Affordable Compact Excellent
SM-X6 is a compact color Doppler ultrasound system with various functions and applications. The high image quality and simple operation can help doctors perform and clinical exams, such as abdomen, small parts. OB/GYN, cardiac, ect.
SM-X6 is a compact color Doppler ultrasound system with various functions and applications. The high image quality and simple operation can help doctors perform and clinical exams, such as abdomen, small parts. OB/GYN, cardiac, ect.
Functions:
Package dimension: 90 lengthx 69 width x 117 height (cm)
15 inch LCD Medical monitor
Probe interface: 4
Scanningmodes: B-mode, dual B-mode, M-mode, B/M, 4B,color M-mode, Wave Doppler (PW, CFM, PDI, B/C, PW).
Other types of ports: 2 USB, W-Lan, VGA, S-video
Connectorsfor connection of peripheral recording devices: video printer, inkjet and laser printers, video recorder, computer
Mode:
B&W mode: B, 2B, B/M, 4B, M, PW
Color mode: CFM, PDI, PW, B/C
Frequency range: 2.0-10.0Mhz
Standard configuration:
3.5MHz Electronic convex array probe, 2.0Mhz ~10Mhz
7.5MHz Electronic linear array probe, 2.0Mhz ~10Mhz
Probe Boxes 4
Power Adapter,1pc.
User’ Manual
Optional:
6.5MHz Electronic trans vaginal array probe, 2.0Mhz ~10Mhz
5.0MHz Electronic micro-convex array probe, 2.0Mhz ~10Mhz
Technical Parameters:
Full imaging mode: 2D, CFM, PDI, PW, HPRF,etc
Standard four transducer sockets with15” LCD monitor
Full function control panel with back-lit and 8 level TGG
Selected transducers: Convex, Linear, Transvaginal, micro-convex etc.
Tissue Harmonic Imaging
iBeamTM: spatial compounding imaging reduces random noise and enhances border differentiation without compromising frame rate
iZoomTM: automatically expands the image to full screen
Full patient database solutions: DICOM 3.0, AVI/JPG, USB2.0, HDDPDF report, etc.
Advanced technologies
SM-X6 has a special beam-former to enhance basic B&w image, doctors only use one key to get the best scanning image.
iClear: adaptive speckle suppression improves contrast resolution
iTouchTM intelligent image optimization with one-click for B and PW
Thepossibility of upgrading the constant-wave Doppler module
Triplexmode (B / color Doppler / Pulse Wave Doppler) Presence
Themaximum speed measured in the pulse-wave doppler in the triplex mode in real time (all three modes are active),
Triplexmode (V / color Doppler / permanent-wave Doppler), with all modes available
Second harmonic block
Editinga cine-loop (including a segmented one)
Prospectivearchiving of a cine-loop with an arbitrary setting of its duration Presence
Cardiologicpackage for evaluation of the fetal cardiovascular system
Cardiacpackage for examining the heart of adults
Related Products
SM-800T Trolley Type Color Doppler Ultrasound Scanner
The full-digital color doppler ultrasound diagnostic apparatus is a new generation of portable color ultrasound diagnostic apparatus newly developed by our company, which brings more humanized manipulation experience to ultrasound doctors. The software and hardware configuration of the whole body application can better meet the clinical needs of different users.

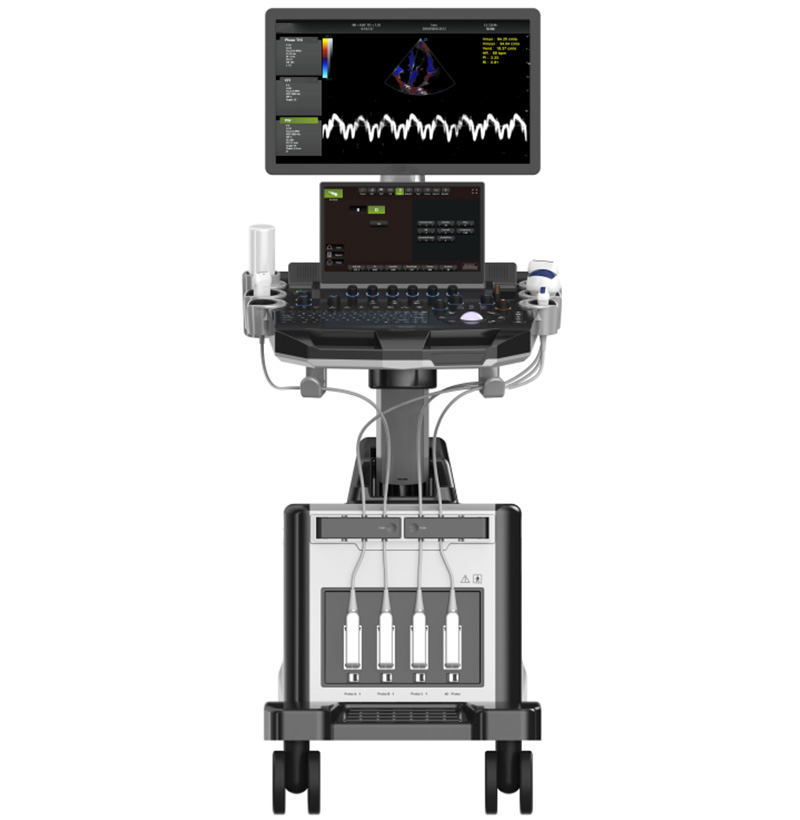

SM-90T 3D_4D_5D Trolley Digital Color Ultrasound Scanner
The high-end ultrasound applies outstanding image resolution, intelligence operation flow, ergonomic design and intimate man-machine interaction as an organic whole. High quality clinical performance, rich measurement software can quickly and conveniently solve the needs of cardiology, abdominal, peripheral vascular, superficial parts, skeletal muscle, gynecology, obstetrics, urology, newborn and other clinical diagnosis. Stable platform and user-friendly operation design improve the work efficiency of doctors to a greater extent.

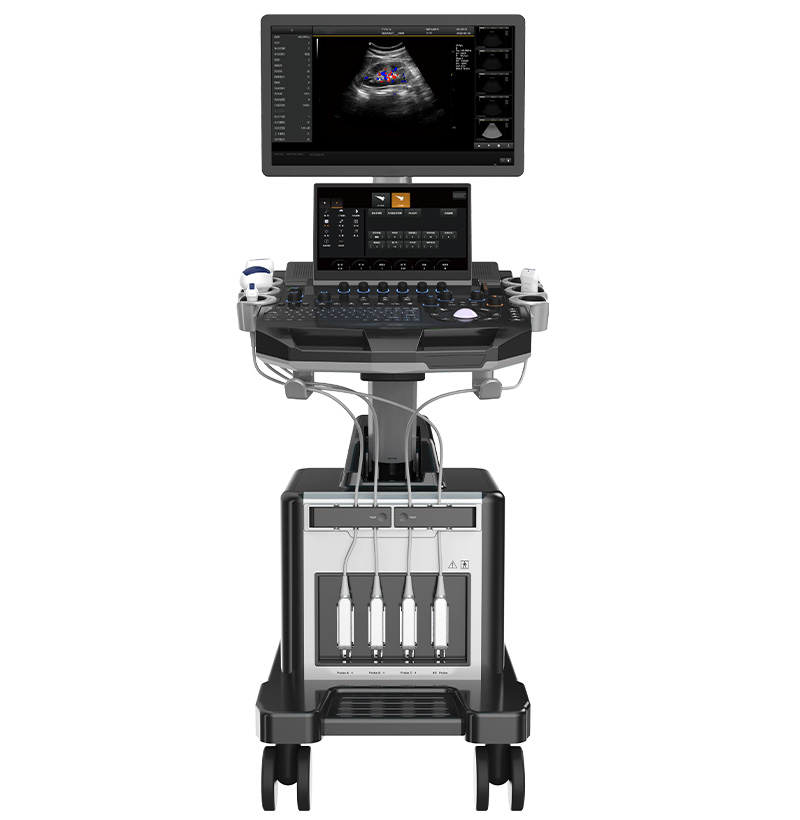

SM-40T 3D_4D_5D Trolley Digital Color Ultrasound Scanner
