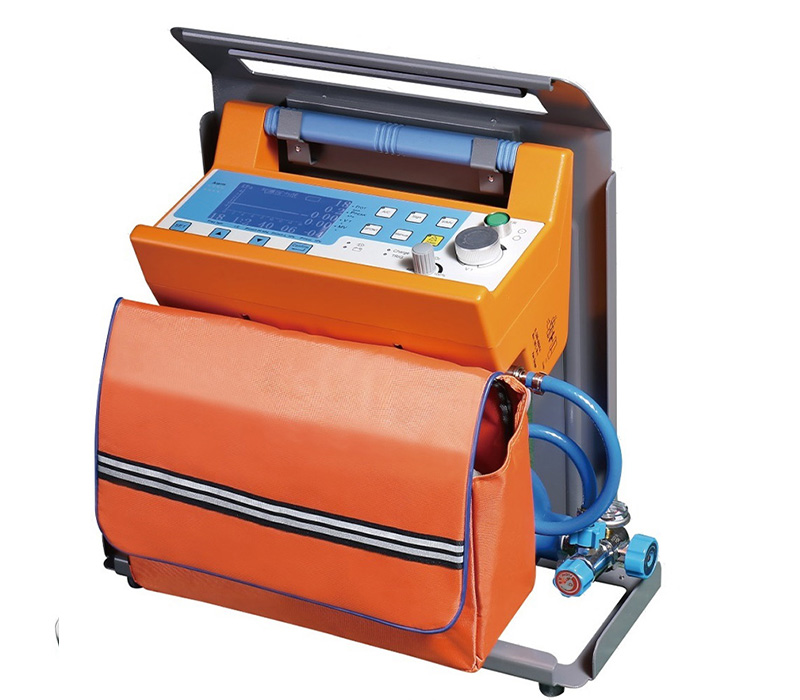

SMT-30E Medical Ventilator

  • Details

  • Parameters

  • Feature

    Compact structure.
    Easy to carry.
    Designed for first aid and Transit.
    Ventilation modes and parameters can be set to facilitate.
    Airway pressure waveform and a variety of parameter monitoring.
    Intuitive monitoring patient state.
    Offer three power: AC, Car Power, Built-in battery.
    With rack, convenient ambulances and transit beds use.
    Optional: PEEP
    Feature

Specifications:

Main Unit

  • High-definition LCD display, 6 inch
  • Application: Adult and Child
  • Pneumatic electronic control
  • Respiratory modes: A/C, A/C+SIGH,SIMV, SPONT, Manual
  • Tidal volume:  0~1500mL
  • Frequency:  4~60bpm
  • I:E 1:8~2:1(adjustable)
  • FiO2: 48% ~100%
  • PTRIG: -2 ~0 kPa
  • Alarm Mute:  ≤120s
  • Plimit-H:  2 ~6 kPa
  • Plimit-L:  0 ~2 kPa
  • PEEP 0.5~2kPa,(optional)
  • Built in lithium battery, supporting a working time at least 120mins.

Monitoring parameters:

  • Tidal volume
  • MV
  • fTOT (total frequency)
  • Ppeak
  • Airway pressure waveform (P-T)
  • Trigger instructions
  • AC-powered instructions
  • DC-powered instructions
  • Charging indicator

Alarm parameters:

  • Plimt-H
  • Plimit-L
  • Choke
  • VT-Low
  • Low gas supply pressure

Low battery
