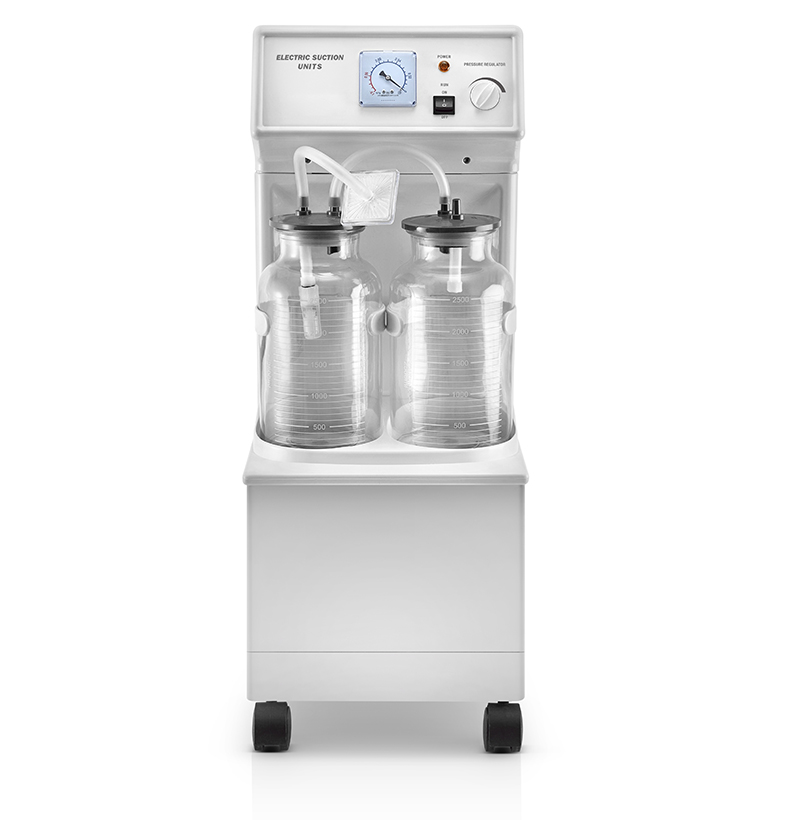

SU-01 Electric Suction Unit

Electric suction unit is the new generation oil-free medical suction unit with negative pressure pump.
Oil-free piston pump helps to keep from oil mist pollution.
Plastic panel makes it resistant from water erosion.
Low noise, easy to operate with manual and pedal switches.
Overflow valve helps to prevent liquid from flowing into pump
Medical suction, high negative pressure, high flow rate.
Negative pressure is adjustable according to requirements.
  • Parameters

Technical Specification

Suction pump piston pump
Ultimate negative pressure value ≥0.09MPa
Regulating scope of negative pressure 0.02MPa ~ultimate negative pressure value
Reservoir ≥2500 mL/pc, 2pcs in the suction unit
Power supply AC220V±22V/110V±11V, 50Hz/60Hz±1Hz
Input power 150VA+15%
Pumping rate ≥20L/min
Noise ≤60dB(A)
Dimension 350mm X 312mm X 800mm
Weight 21kg



Normal Working Condition

Ambient temperature: 5℃-35℃

Relative humidity: ≤80%

Atmospheric pressure: 86kPa-106kPa

Note: When storage and transportation temperature is lower than 5℃, the suction unit shall be placed in the place

with normal working temperature for over 4 hours before use.



List of Accessories

Suction hose (φ7×φ12,length≥1.3m) 1 piece

Fuse 2 pieces

Air filter 2 pieces

Power cord 1 piece

Pedal switch 1 piece
